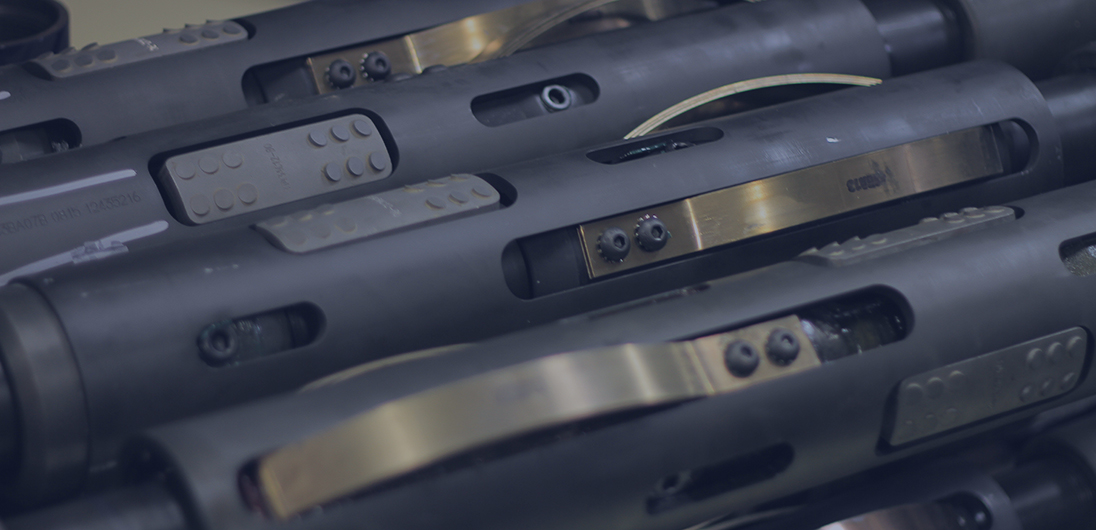

PLUGS + PACKERS
Reliable Isolation. Every Time.

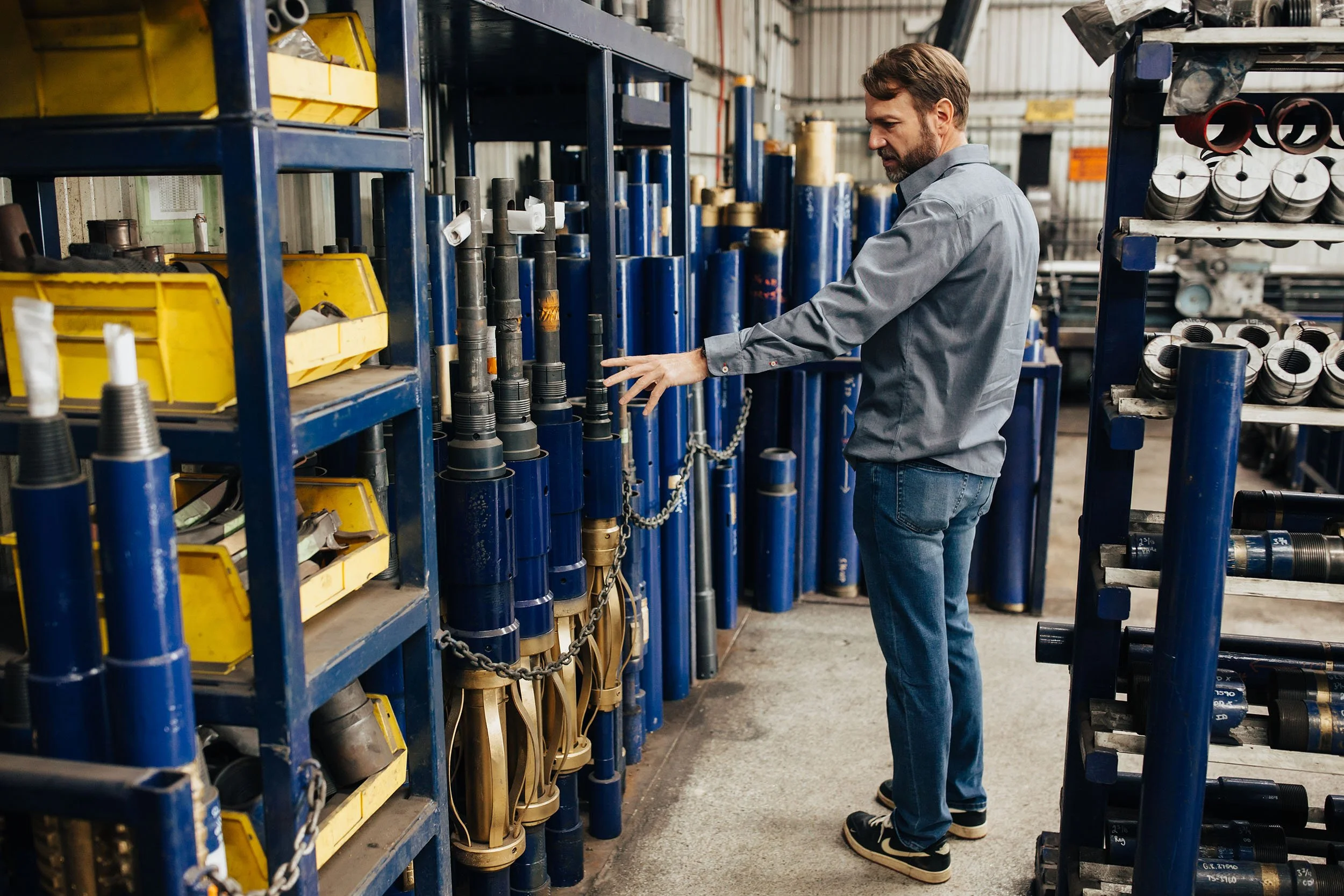

The right seal matters. Northern States stocks plugs and packers for a full range of downhole applications, backed by the expertise to help you choose the right tool for the job.
P L U G S + P A C K E R S
Application Use Cases
From zone isolation to wellbore abandonment, our plugs and packers are built for the demands of the Bakken and beyond.
Isolate specific intervals to prevent fluid communication between zones during completion, workover, or production operations.
ZONE ISOLATION
Set a reliable pressure barrier downhole to confirm wellbore integrity before proceeding with completion or stimulation work.
PRESSURE TESTING
Permanent plug and abandonment solutions engineered to meet regulatory requirements and ensure long-term wellbore integrity.
WELLBORE ABANDONMENT
Built for high-pressure, high-temp environments
Temperature Rating
Up to 400°F continuous service
Pressure Rating
Up to 15,000 PSI differential
Material
Alloy steel, H2S service available
Size Range
2⅞" through 9⅝" casing

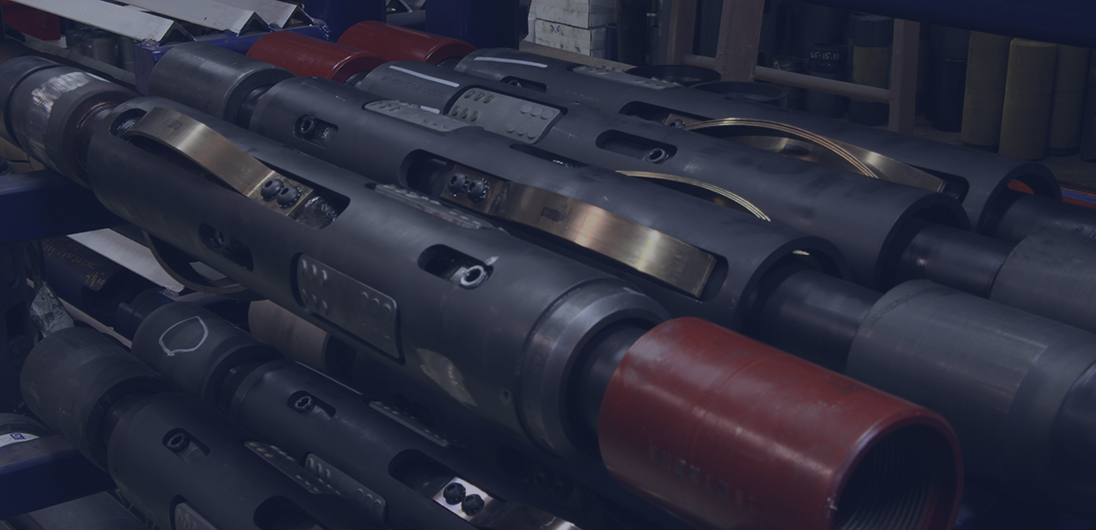

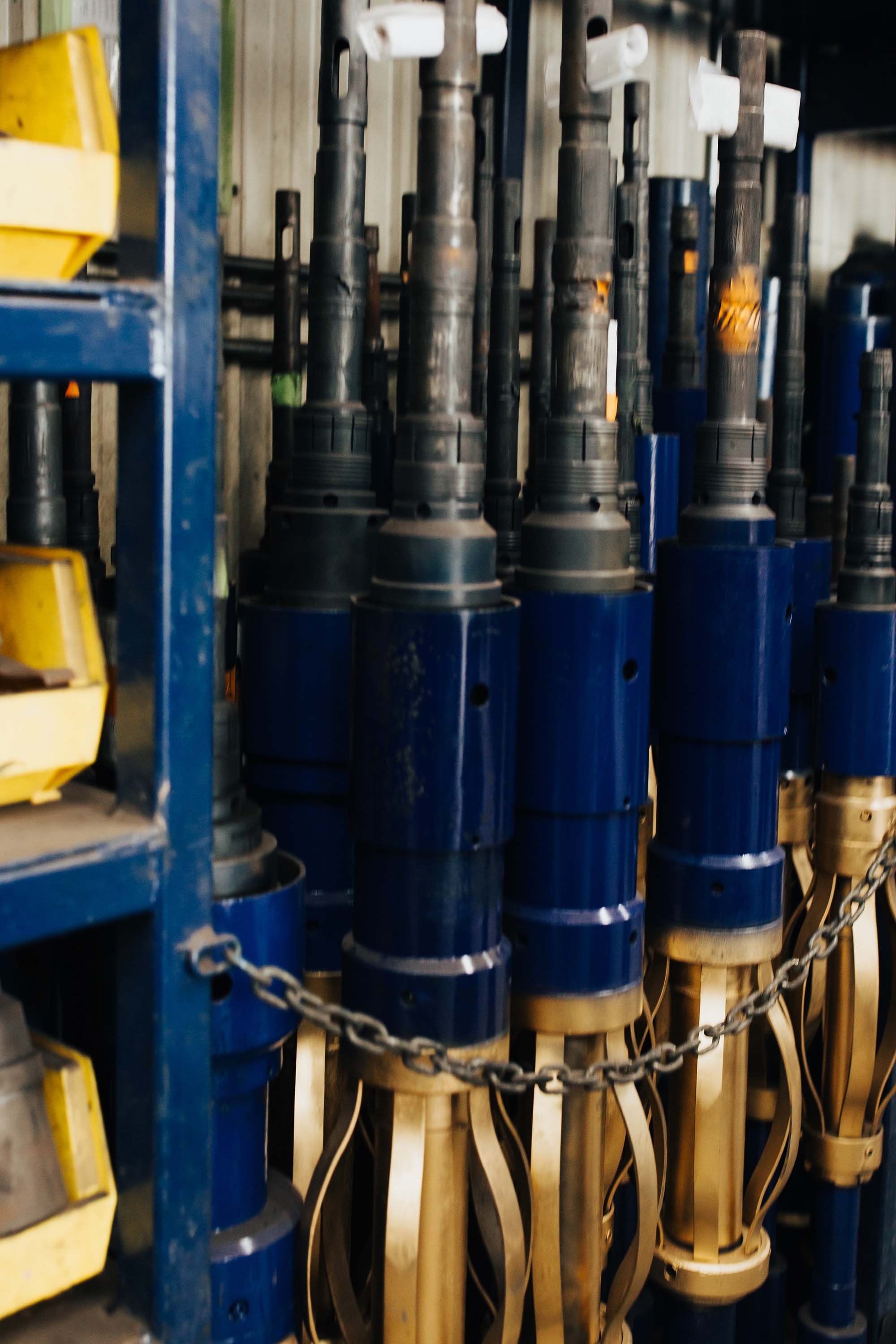

In Stock Plugs & Packers
Packer Services & Tools
All Packers can be dressed with 70, 80, 90 or 95 Duro Elastomers
Also available in Nitrile (standard), HSN, Viton
Standard Bore or Big Bore
10K AS1X & VS1X Packer (mechanical or wireline set)
2.875, 6.5#, Tool OD 2.25
3.50, 7.7-10.2#, Tool OD 2.781
4.00, 9.5-11.0#, Tool OD 3.25
4.00, 10.46-12.95#, Tool OD 3.187
4.50, 9.5-13.5#, Tool OD 3.75 (nickel coated in stock)
4.50, 13.5-15.10#, Tool OD 3.65
5.00, 18-20.8#, Tool OD 4.00
5.50, 14-20#, Tool OD 4.625 (nickel coated in stock)
5.50, 20-23#, Tool OD 4.5 (nickel coated in stock)
6.625, 17-24#, Tool OD 5.75 (nickel coated in stock)
7, 17-26#, Tool OD 6 (nickel coated in stock)
7, 26-32#, Tool OD 5.875 (nickel coated in stock)
7, 29-35#, Tool OD 5.812 (nickel coated in stock)
Crest 3 Packer & HD Packer
3.50, 7.7-9.3#, Tool OD 2.844
4.50, 9.5-13.5#, Tool OD 3.771
5, 15-18#, Tool OD 4.125
5.50, 14-20#, Tool OD 4.641
5.50, 20-23#, Tool OD 4.50
7, 26-35#, Tool OD 5.844
7, 32-38#, Tool OD 5.75
WLTC Bridge Plug - Mechanical or Wireline set
3.50, 12.95#, Tool OD 2.61
4.50, 9.5-13.5#, Tool OD 3.771
5, 15-18#, Tool OD 4.125
5.50, 14-20#, Tool OD 4.641
5.50, 20-23#, Tool OD 4.50
7, 26-35#, Tool OD 5.844
7, 32-38#, Tool OD 5.75
Model R Packer
5.50, 14-20#, Tool OD 4.625
5.50, 20-23#, Tool OD 4.50
7, 17-23#, Tool OD 5.875
Wireline Set BP Wireline Retrieve
2.375, 4.6-4.7#, Tool OD 1.850
2.875, 6.4-6.5, Tool OD 2.250
3.50. 7.7-10.2#, Tool OD 2.781
4.50, 13.5-15.1#, Tool OD 3.650
4.50, 9.5-13.5#, Tool OD 3.771
5, 11.5-15.0#, Tool OD 4.125
7, 29-35#, Tool OD 5.812
7, 26-32#, Tool OD 5.875
H-Valve
2 3/8 eue
2 7/8 eue
Tool Accessories
Plug Retainer, 2 3/8, 2 7/8 and 3 ½ eue
Profile Nipples, X,XN,R,RN available in eue or ph-6
Ceramic Disc Subs, (dual or single) available in eue or ph-6
Bar/Ball Sub available 2 3/8 and 2 7/8 eue
On/Off Tools
Stinger with profile
Seat Nipples
JD Pulling Tool
